Integrated Onsite Solutions

Integrated PFAS Destruction Solutions for Municipalities and Industries

SOLUTIONS FOR WATER,
WASTEWATER, AND LEACHATE

BREAK FREE FROM PFAS®

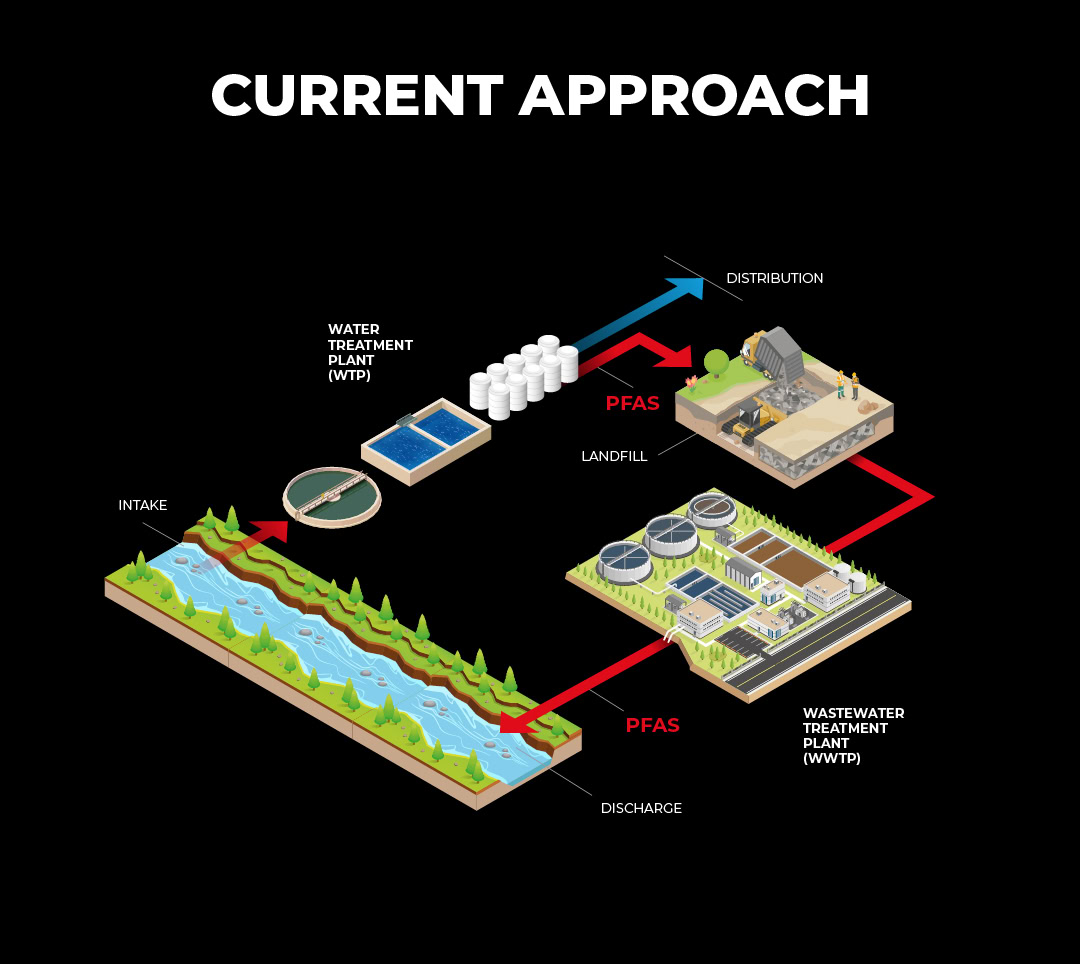

Current treatment approaches for removing PFAS from water include separation by reverse osmosis or adsorption that uses a media. However, with these current solutions, PFAS is simply separated from the water, leaving the possibility of PFAS being re-released into the environment.



Utilities or industries must consider cradle-to-grave costs and liabilities with any PFAS treatment solution. The ultimate disposal and/or destruction of captured PFAS is often overlooked, but onsite PFAS destruction offers operators the greatest confidence with a lower legal liability.

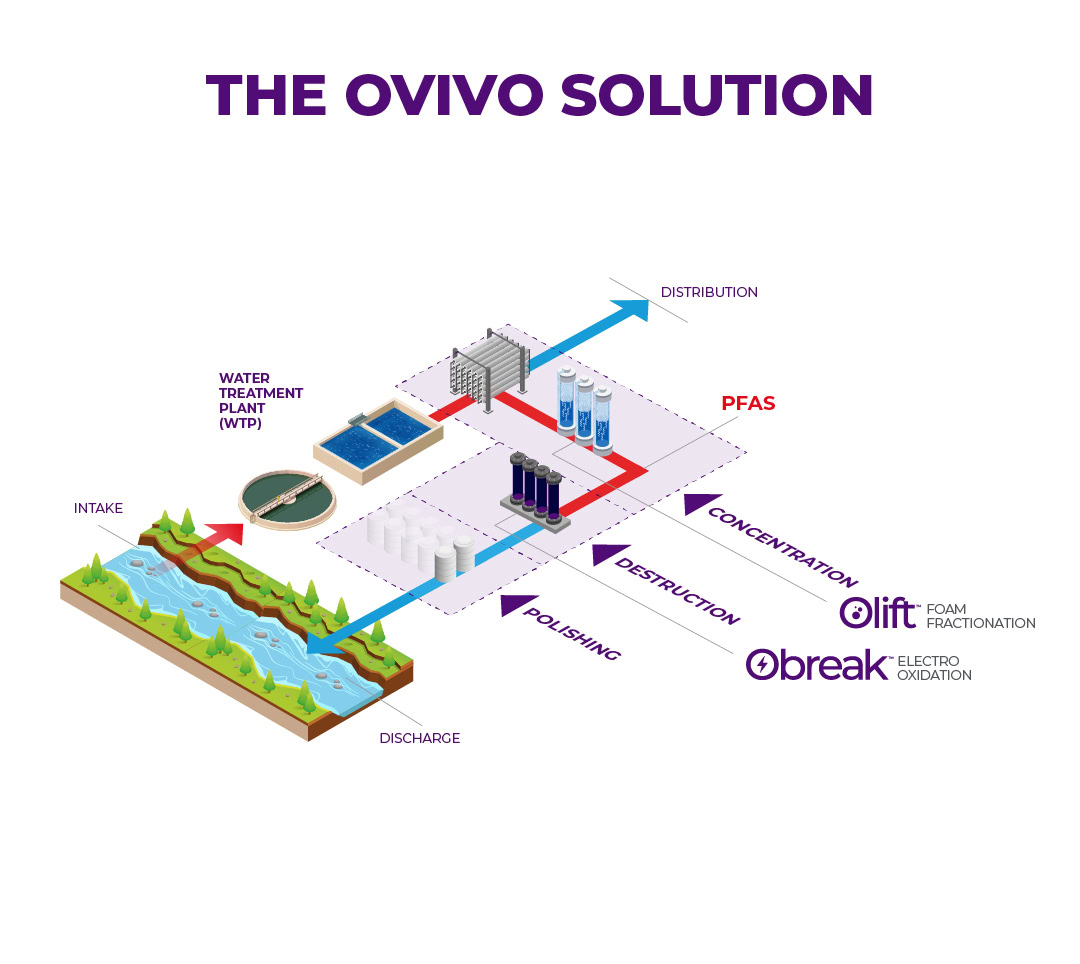

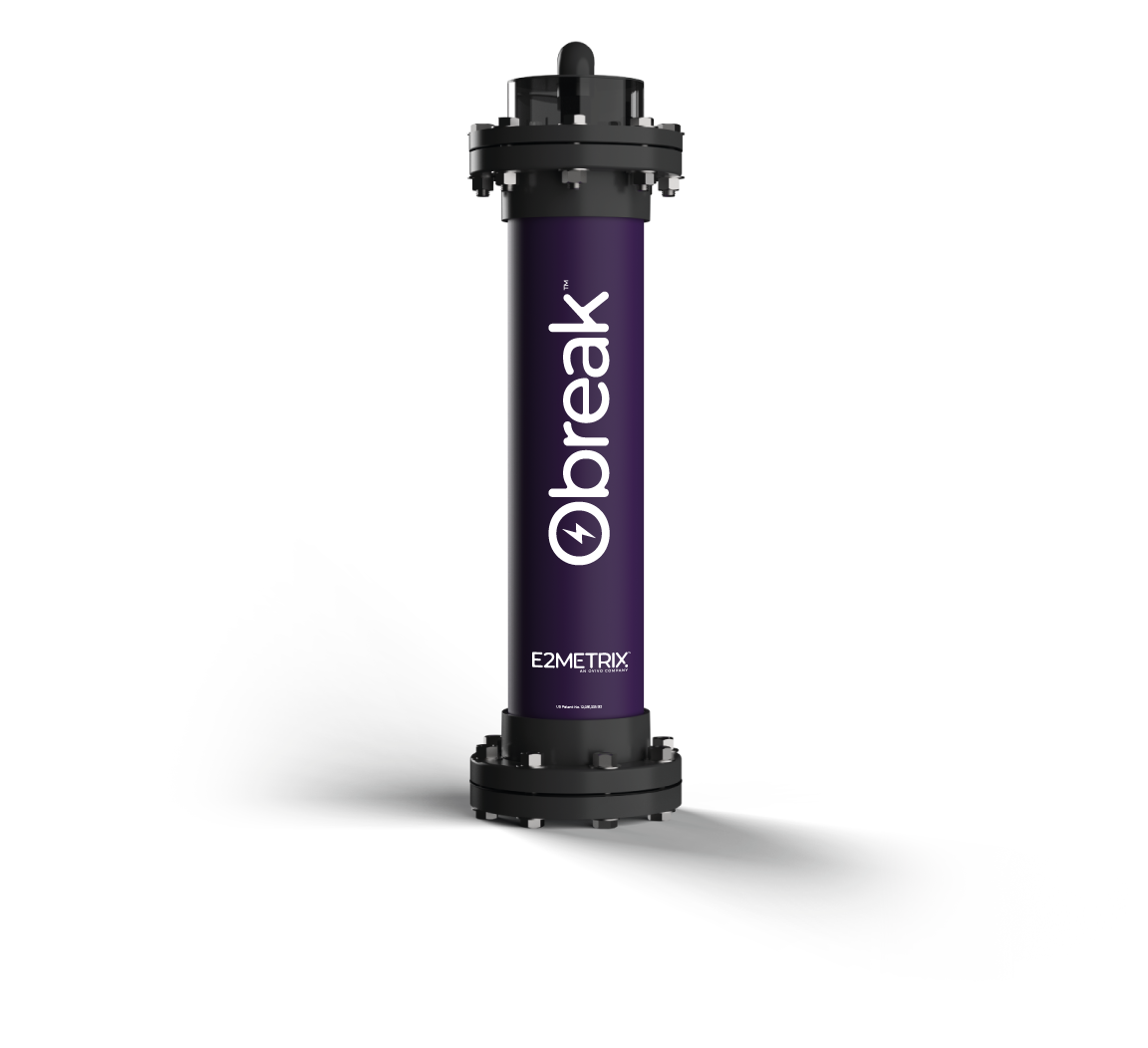

Obreak® Electro-Oxidation, the E2METRIX EO system, is at the heart of a complete, cost-effective treatment train for water and effluents. The optimal integration of EO includes a concentration step upstream from destruction and a media filter polishing step downstream. Concentrating the PFAS (100x-10,000x) in the feed to EO will optimize the direct and indirect oxidation reactions, resulting in a substantially lower capital expenditure and energy consumption.

obreak-isolated

Full and complete destruction is feasible with EO, but the costs associated with this could be prohibitive. A sensible approach, which will be palatable for stakeholders financially is to target a 90-99% destruction, while using a media polishing step downstream to complete the treatment.

With the E2METRIX toolbox, we can propose a single treatment step or a complete flow sheet featuring all the necessary steps for a final, cost-effective, integrated solution for PFAS remediation.

ovivo-pfas-concentration-400px

REMOVAL & CONCENTRATION

shadow-steps-400px
pfas-icon-temp-arrow-25px
ovivo-pfas-destruction-400px

DESTRUCTION

shadow-steps-400px
pfas-icon-temp-arrow-25px

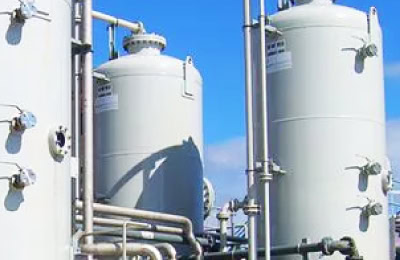

ovivo-pfas-polishing-400px

POLISHING

shadow-steps-400px

ovivo-pfas-concentration-400px

REMOVAL & CONCENTRATION

shadow-steps-400px

Reverse
Osmosis

Regenerable
Ion Exchange


ovivo-pfas-destruction-400px

DESTRUCTION

shadow-steps-400px

ovivo-pfas-polishing-400px

POLISHING

shadow-steps-400px

Granular
Activated
Carbon (GAC)

Ion
Exchange
Resins

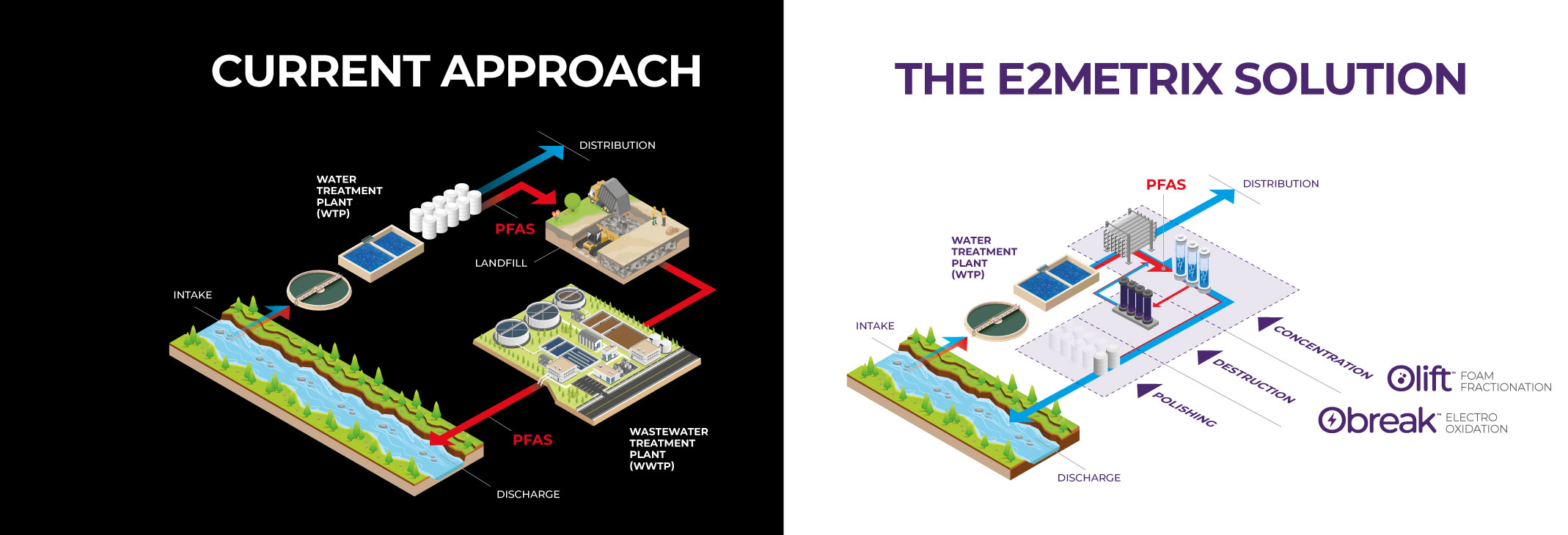

current-approach
