Products / Olift® foam fractionation

Olift® foam fractionation

Onsite PFAS removal with ozone foam fractionation

Short answer

Olift® foam fractionation is a continuous foam fractionation system that removes and concentrates PFAS from water onsite, with up to 99% targeted PFAS removal. The foam concentrate is generally 1% to 10% of the water treated, which reduces the size and energy needs of the Obreak® electro-oxidation destruction step. At Hobart International Airport, Olift® foam fractionation removed more than 99.5% of regulated PFAS from 106,000 gallons of fire training water.

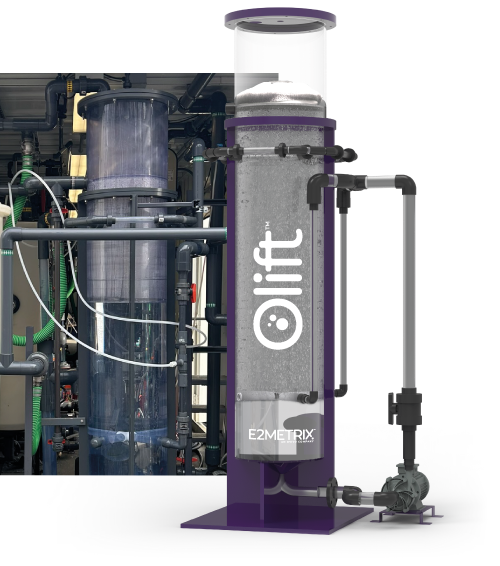

The Olift® Continuous Foam Fractionation System uses a patented process for cost-effective onsite removal and concentration of PFAS from contaminated waters, including reverse osmosis concentrates, wastewaters, groundwaters, and landfill leachates.

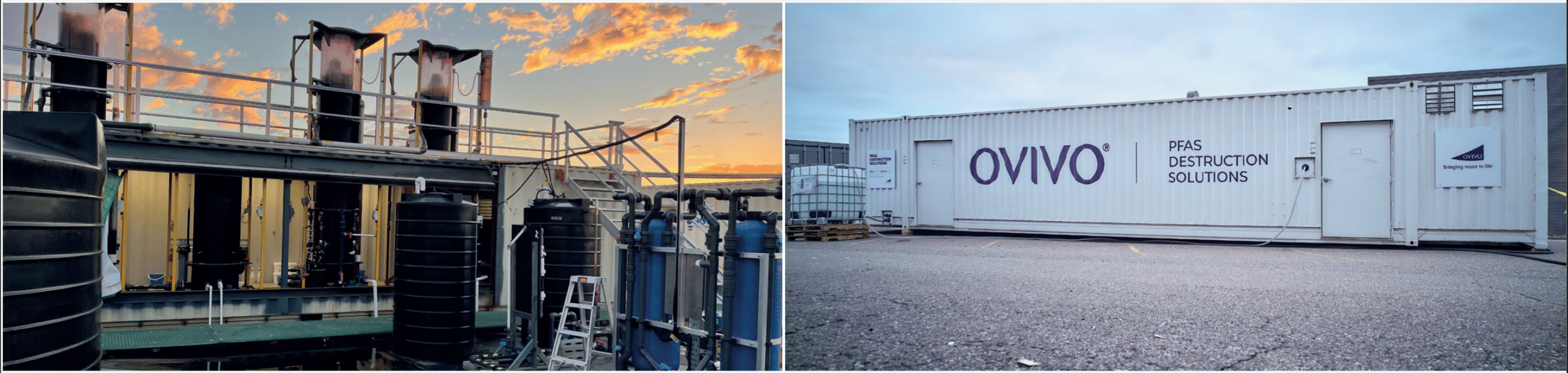

Olift foam fractionation column inside a container

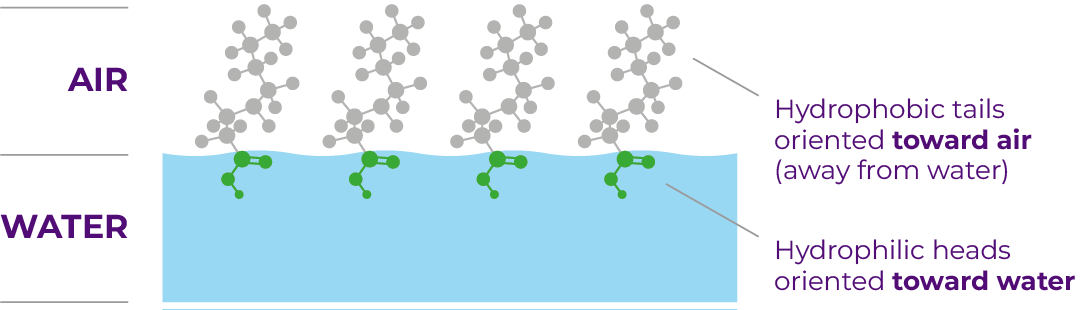

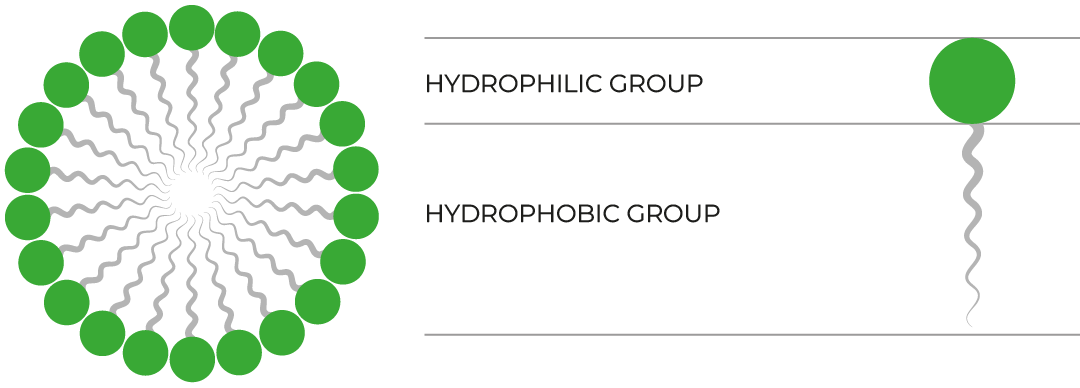

Olift® Foam Fractionation employs both ozone and air to create microbubbles that have a higher surface area and electrostatic charge compared to systems using only air, improving PFAS removal and concentration factors. Ozone and/or air bubbles are introduced into a PFAS-contaminated water stream inside an Olift® foam fractionation Foam Fractionation column, specifically designed and optimized for PFAS removal. Each PFAS molecule has a hydrophilic head and a hydrophobic tail, causing alignment and concentration at the gas-water interface on the bubble surface.

These small bubbles, containing PFAS, rise to the water surface and form a concentrated foam at the top of the column, leaving behind relatively PFAS-free treated water (retentate) with up to 99% targeted PFAS removal. The foam is then separated, collapsed, and concentrated, allowing for a more economic destruction. The foam enriched with PFAS typically constitutes between 1% and 10% of the treated influent, which reduces the size and energy requirements for E2METRIX®‘s Obreak® electro-oxidation® Electro-Oxidation (EO) process designed for onsite PFAS destruction. The retentate can be set to discharge or go through a media polishing step.

ovivo-pfas-removal-foam-fractionation-hydrophobic-hydrophilic-1080px
ovivo-pfas-removal-foam-fractionation-hydrophobic-hydrophilic-b-1080px

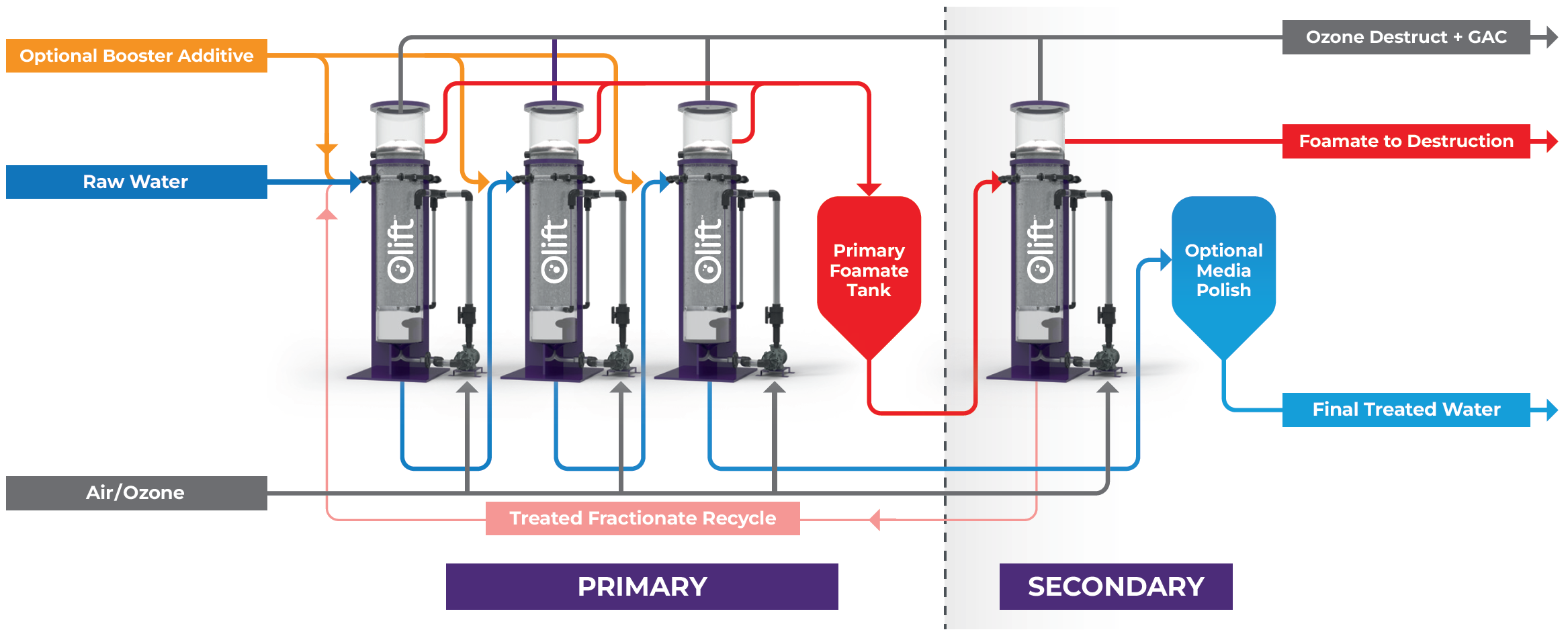

The Olift® Foam Fractionation Process

olift-process

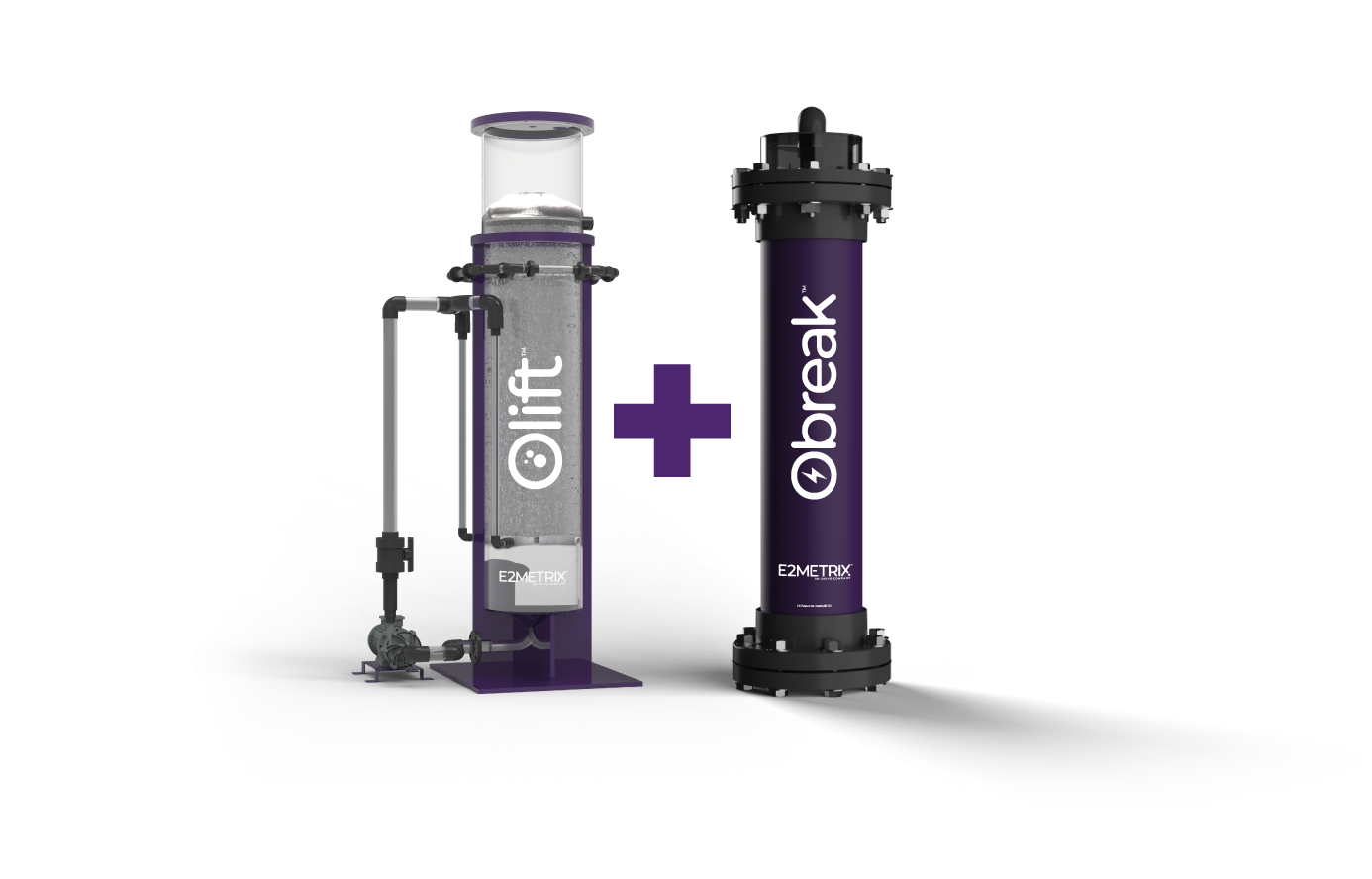

Integrated PFAS Destruction Solutions for Municipalities and Industries

reactors

Common treatments for removing PFAS from water include separation (reverse osmosis) and adsorption (granular-activated carbon or ion-exchange resin). However, these approaches merely capture PFAS from water into reverse osmosis concentrate or into PFAS-contaminated media, resulting in PFAS waste streams that must be dealt with separately. These approaches are proving to be expensive and come with additional risks, including potential release of captured PFAS back into the environment.

Municipalities and industries must plan for the final disposal of captured PFAS. Onsite destruction offers greater confidence by minimizing exposure and risk.

The E2METRIX Olift® Continuous Foam Fractionation process can be integrated into most flow sheets for PFAS removal and concentration. When combined with Obreak® Electro-Oxidation, it provides complete onsite removal, concentration, and destruction. Our engineers and field technicians are ready to help develop optimal treatment approaches to eliminate PFAS from waste streams and water supplies while reducing solid waste liabilities.

The small volume of foamate enriched with PFAS is generally between 1% and 10% of the influent treated, significantly reducing the size and energy requirements of Obreak® electro-oxidation (EO) process for onsite PFAS destruction.

The Continuous Olift® Foam Fractionation process is unique among air-only foam fractionation methods.

Ozone, selectively used, creates microbubbles with more surface area than air bubbles, enhancing PFAS removal efficiencies.

Ozone oxidizes co-contaminants, reducing competition for downstream treatment such as polishing and destruction.

The process operates continuously rather than in batches for uninterrupted and steady state operations.

Fully automated with remote operation and monitoring.

Effective for removing PFAS from various water sources, including reverse osmosis concentrates, landfill leachates, industrial wastewater, military wastes, groundwater, and drinking water.

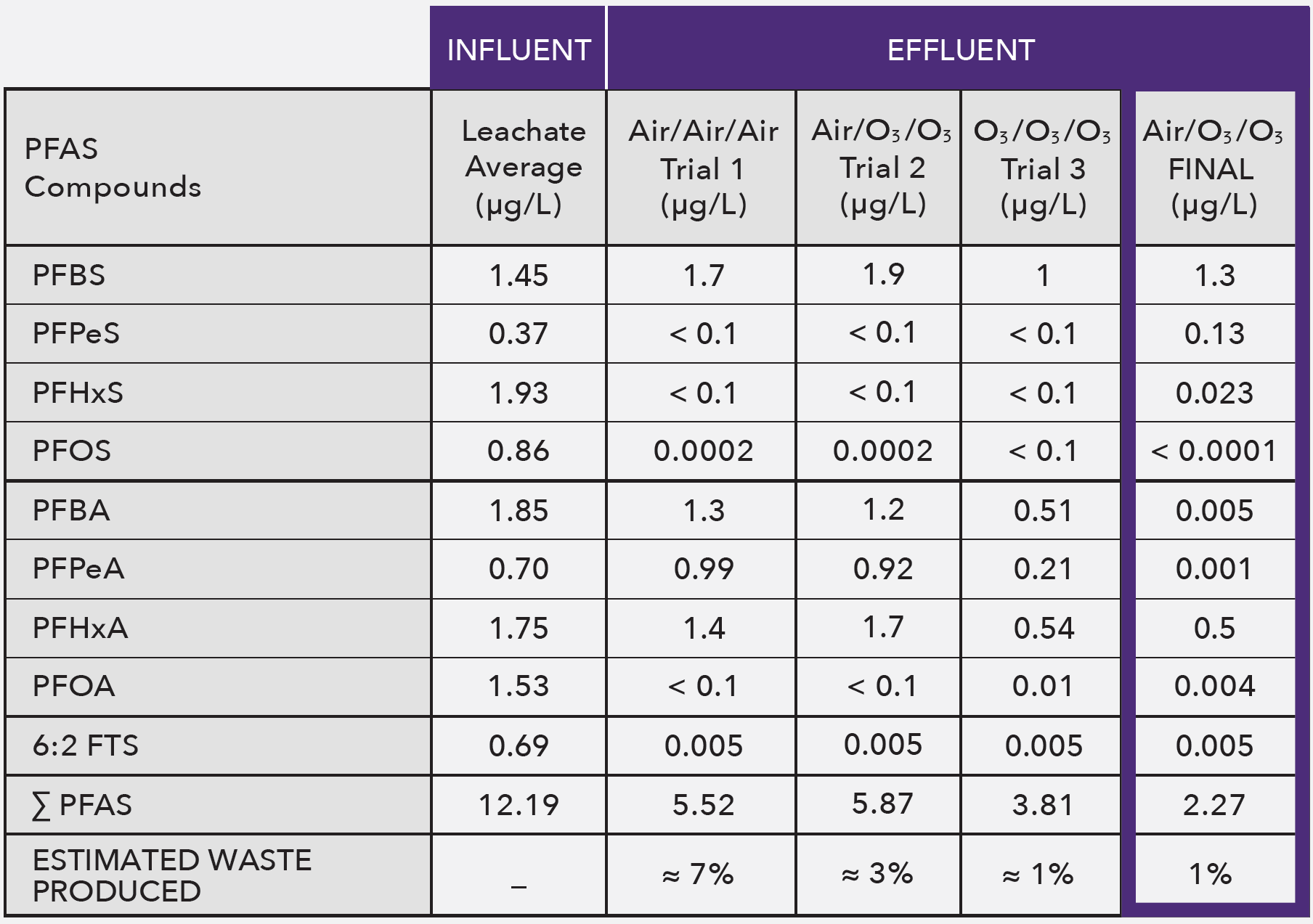

Comparison of Air vs. Ozone
in Continuous Foam Fractionation

olift-table
Aerial view of Hobart International Airport, Tasmania
Airport fire training ground · Tasmania, Australia

Hobart International Airport

>99.5%

of regulated PFAS removed from 106,000 gallons of fire training water with Olift® foam fractionation

Olift® foam fractionation · hot fire training ground · Hobart aerial: Christopher Neugebauer, CC BY-SA 2.0 · JD Sims plant photo: WMEL · PVSC plant photo: PVSC

FAQ

Olift® foam fractionation questions

What is Olift® foam fractionation?

Olift® foam fractionation is a continuous foam fractionation system that uses a patented process to remove and concentrate PFAS from contaminated water onsite. Ozone and air are introduced into a column designed and optimized for PFAS removal.

How does foam fractionation remove PFAS?

Each PFAS molecule has a water-loving head and a water-repelling tail, so the molecules line up on the surface of small bubbles. The bubbles rise and carry the PFAS to the top as foam, which is collected as a concentrate.

Why use ozone as well as air?

Ozone and air together create microbubbles with a higher surface area and electrostatic charge than air alone, which improves PFAS removal and concentration factors.

What kinds of water can Olift® foam fractionation treat?

Olift® foam fractionation treats reverse osmosis concentrates, wastewaters, groundwaters and landfill leachates.

What happens to the PFAS concentrate?

Olift® foam fractionation leaves the PFAS in a small volume of concentrate. Obreak® electro-oxidation destroys it onsite, so it does not have to be shipped away. See the integrated onsite solution and the Obreak® electro-oxidation system.
