Onsite PFAS Destruction Using Electro-Oxidation

BREAK FREE FROM PFAS™



Obreak™ electro-oxidation (EO) system by E2METRIX, an Ovivo company, incorporates over a decade of expertise in developing, designing, fabricating, and delivering commercial EO solutions for diverse applications and contaminants.



The features of our commercial EO reactors—industrial-grade robust design, optimized hydraulics based on CFD modeling, ease of maintenance, automation, energy efficiency, and remote operation across multiple platforms—have been integrated into Obreak EO system for onsite PFAS destruction.

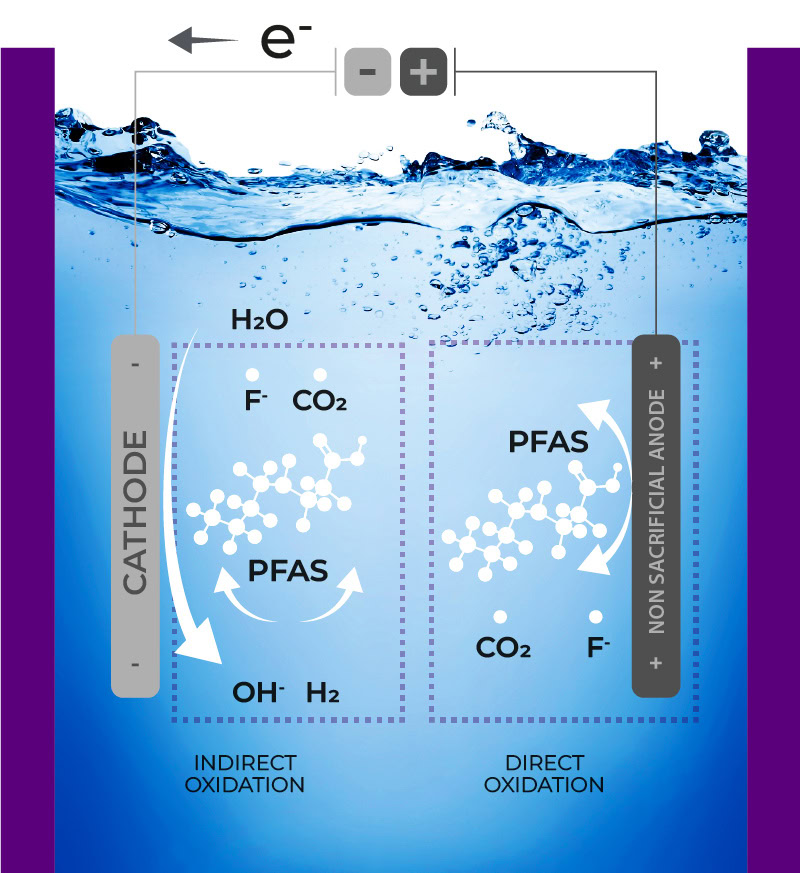

In the EO process, a continuous electrical current is passed through non-sacrificial electrodes submerged in process water within an Obreak electro-oxidation reactor. This EO process involves direct oxidation via electron transfer at the anode surface and indirect oxidation via the generation of oxidants within the water, leading to the stepwise breakdown of the carbon-fluorine (C-F) bonds, which PFAS are characterized by, into their mineral forms of carbon dioxide (CO₂) and fluoride ions (F-). Both destruction products are harmless at low concentrations. When Obreak electro-oxidation is combined with concentration and polishing steps into an integrated treatment approach, it can significantly reduce liabilities and long-term disposal costs compared to current adsorption-only methods. Furthermore, The Obreak electro-oxidation can be conveniently and safely operated at the site where the PFAS-contaminated liquid is located, thereby eliminating transportation and liability concerns

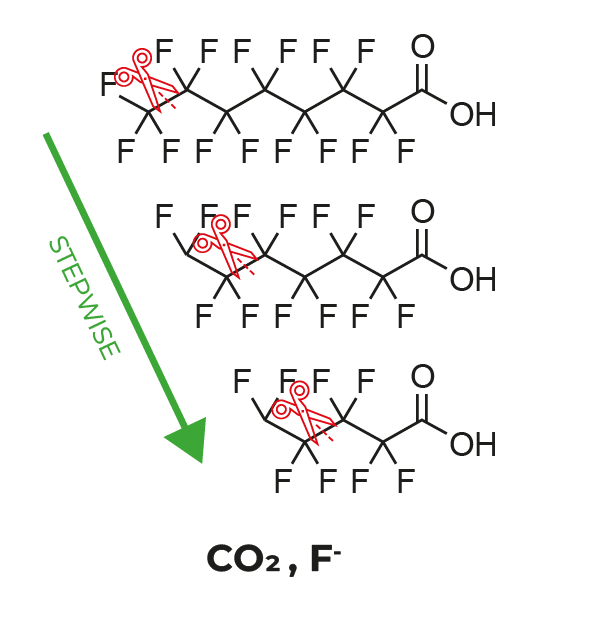

Stepwise
degradation

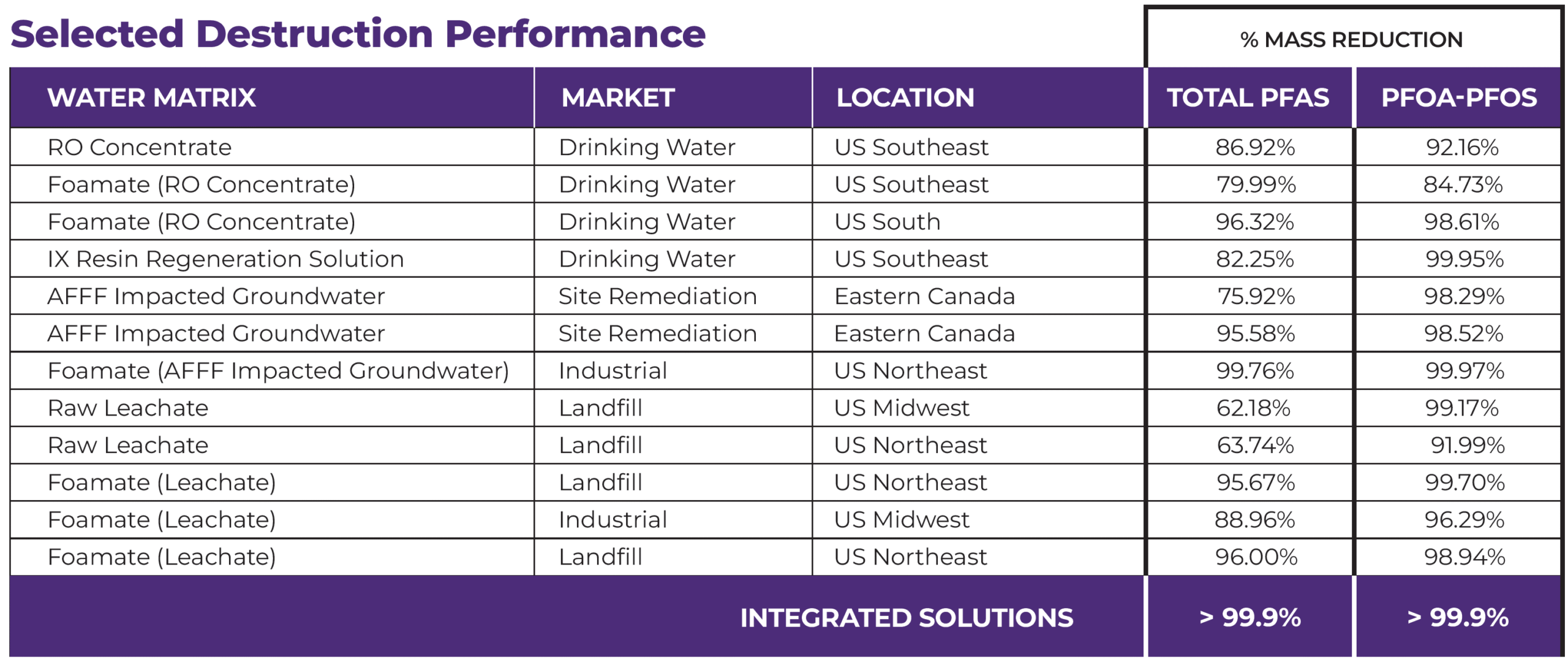

Obreak electro-oxidation can achieve high-destruction efficiencies in a wide variety of water treatment applications.

Drinking water
plant

Landfill leachate
treatment
(onsite or offsite)

Municipal wastewater
plant

Groundwater
remediation

Water reuse
plant

Industrial wastewater
(ex. Surface finishing, semiconductors,
PFAS manufacturing)

Obreak electro-oxidation for onsite PFAS destruction can be configured (e.g. anode selection) and adapted to meet your technical, regulatory, and financial needs. More importantly, Obreak electro-oxidation is one tool in the E2METRIX toolbox of concentration, destruction, and polishing unit operations. Ovivo can provide a single processing step or the complete, overall, integrated PFAS treatment train — your best bet for a cost-effective solution.

REMOVAL & CONCENTRATION

DESTRUCTION

POLISHING

C

REMOVAL & CONCENTRATION

C

DESTRUCTION

C

POLISHING

Obreak electro-oxidation has been shown to be highly effective in destroying PFAS
on concentrated streams, such as:

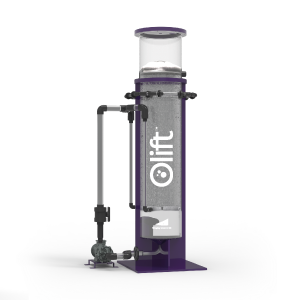

  • Foamate from foam fractionation

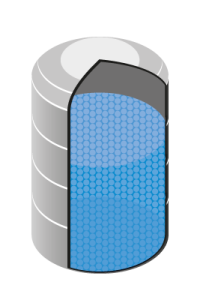

  • Concentrate from ion-exchange resin regeneration

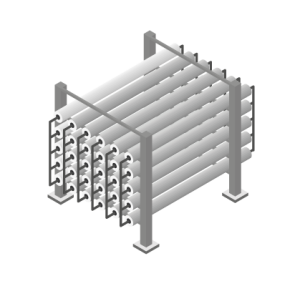

  • Concentrate from reverse osmosis (RO)

The E2METRIX Obreak Electro-Oxidation system
is available NOW!

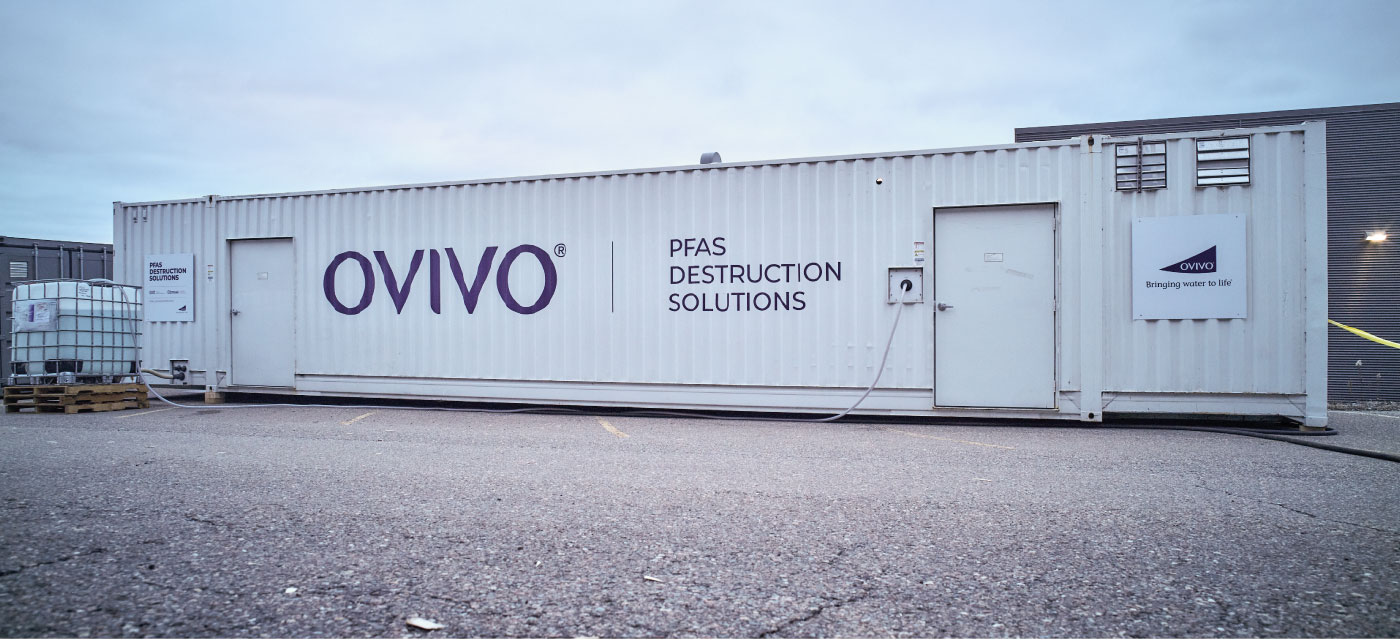

The Obreak™ Electro-Oxidation (EO) system can be delivered in a container or trailer or be a fixed installation inside a building.

DOWNLOAD Obreak™ Onsite PFAS Destruction Brochure
